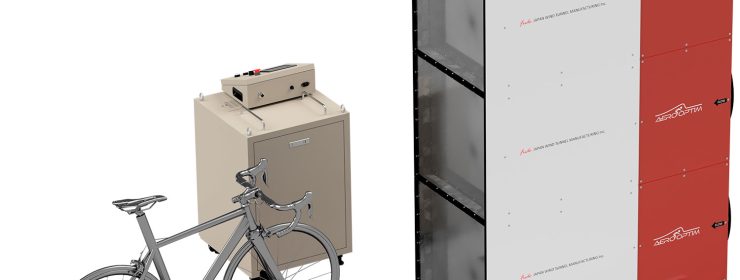

With a square cross-section that is 70 centimeters per side, this compact, stackable unit is a complete wind tunnel containing a fan, diffuser, and flow straightener. The flow area can be customized in 70 cm increments. Caster jacks on the bottom make the unit portable for intermittent use.

Aero Optim

Addons for our wind tunnels are categorized into attachments and measurement equipment. Wind tunnel attachments are designed to increase flow speed (nozzles) or to improve flow quality (flow straighteners). Measuring equipment include tables for bicycles and sports wheelchairs.

Aero Optim Options

This unit is an Aero Optim wind tunnel scaled up to a width of 3 meters. Designs for certain speed ranges can be prearranged. Built for outdoor use, this unit will create a &quot;wall of wind&quot; that covers an entire car or housing facility. Unlike the Aero Optim, this unit is not designed to be portable. However, we can arrange reconstructions when necessary.

Large-scale Stackable Wind Tunnel

Aero Optim Series

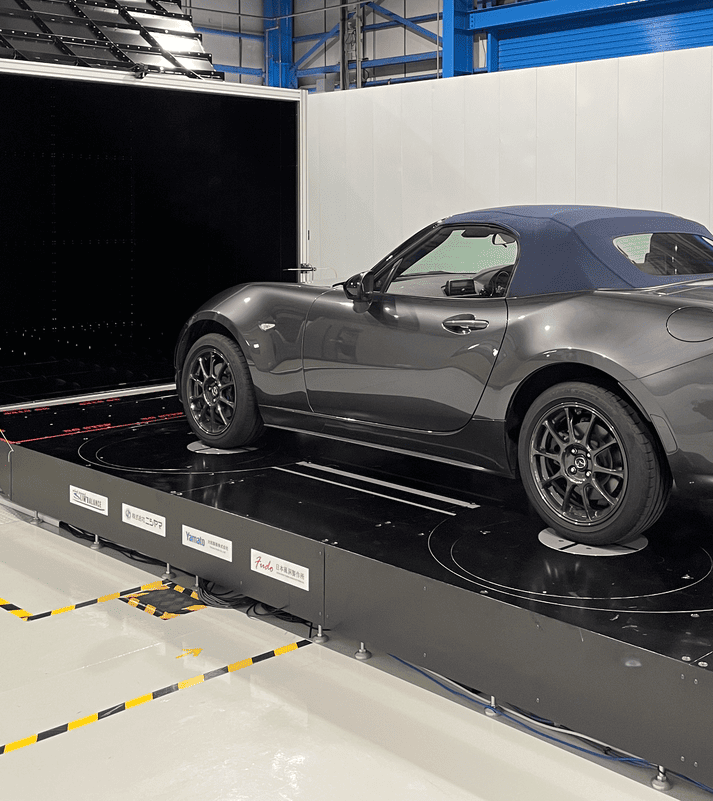

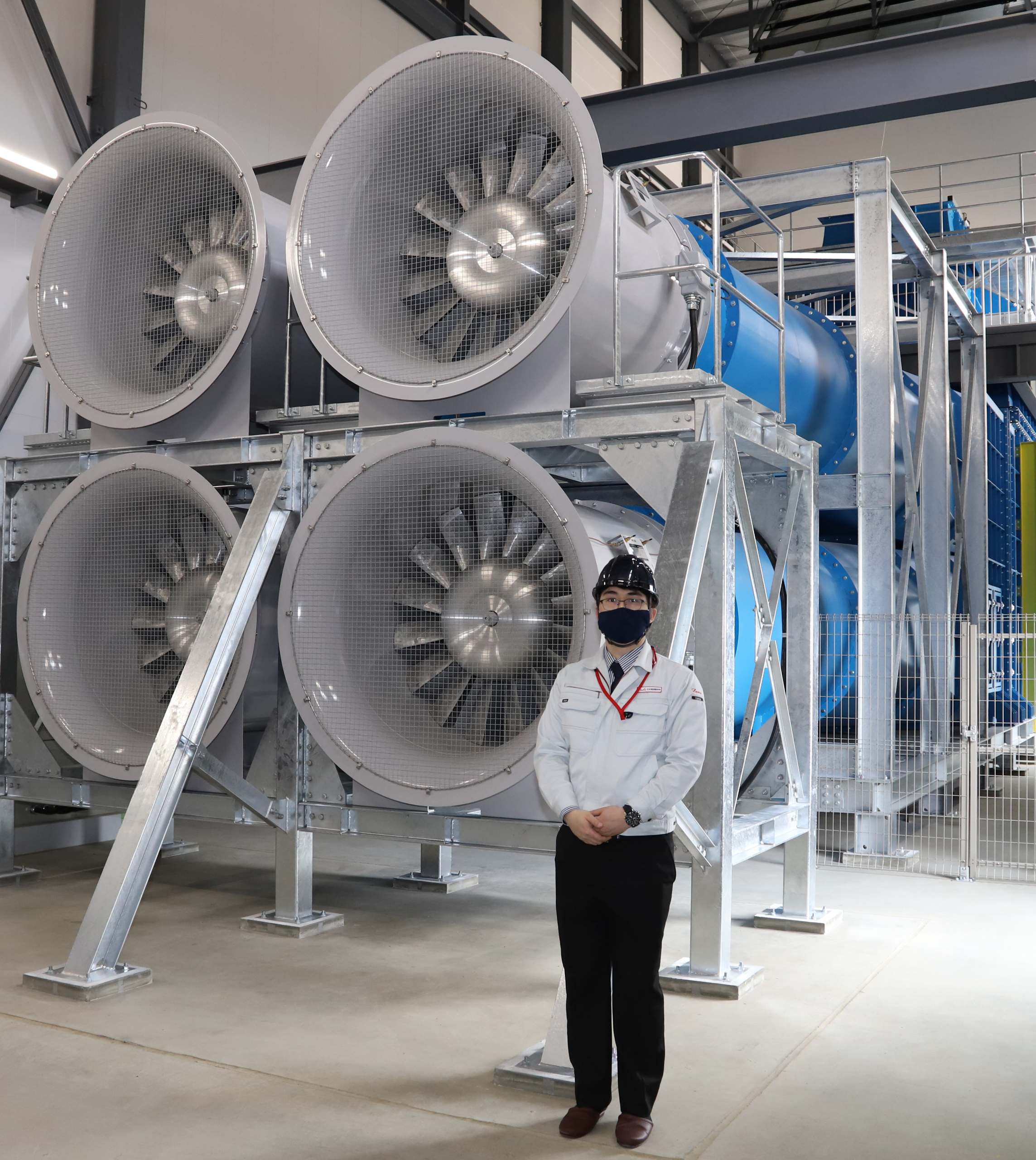

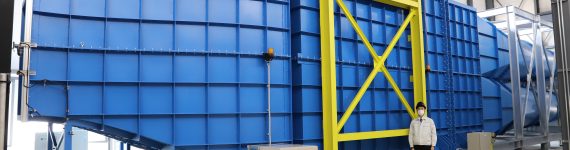

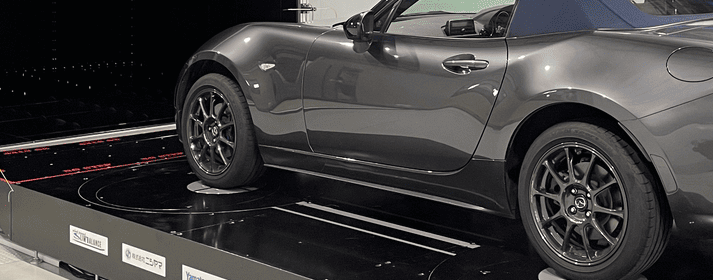

Our company designs and produces large-scale wind tunnels that utilize the highly efficient flow-straightening technology cultivated from the Aero Optim series. We offer a one-stop process that includes adding systems such as automatic nozzle diverters, specially-made balances, measuring systems, and operating software.

Large-scale Wind Tunnel

Large-scale Wind Tunnels

Calibration wind tunnels are essential for many fields that use anemometers in order to calculate accurate wind speed. With a portable size that fits on top of an average desk, this calibration wind tunnel is surrounded by a general-purpose grooved frame. This frame works as a handle and protective shield, and it can also be used as a fixture for addtional gear or a flow channel. Custom addons such as holding brackets and flow diverters are available upon request.

Calibration Wind Tunnel (80mm outlet)

Calibration Wind Tunnel (100mm outlet)

Calibration Wind Tunnel (120mm outlet)

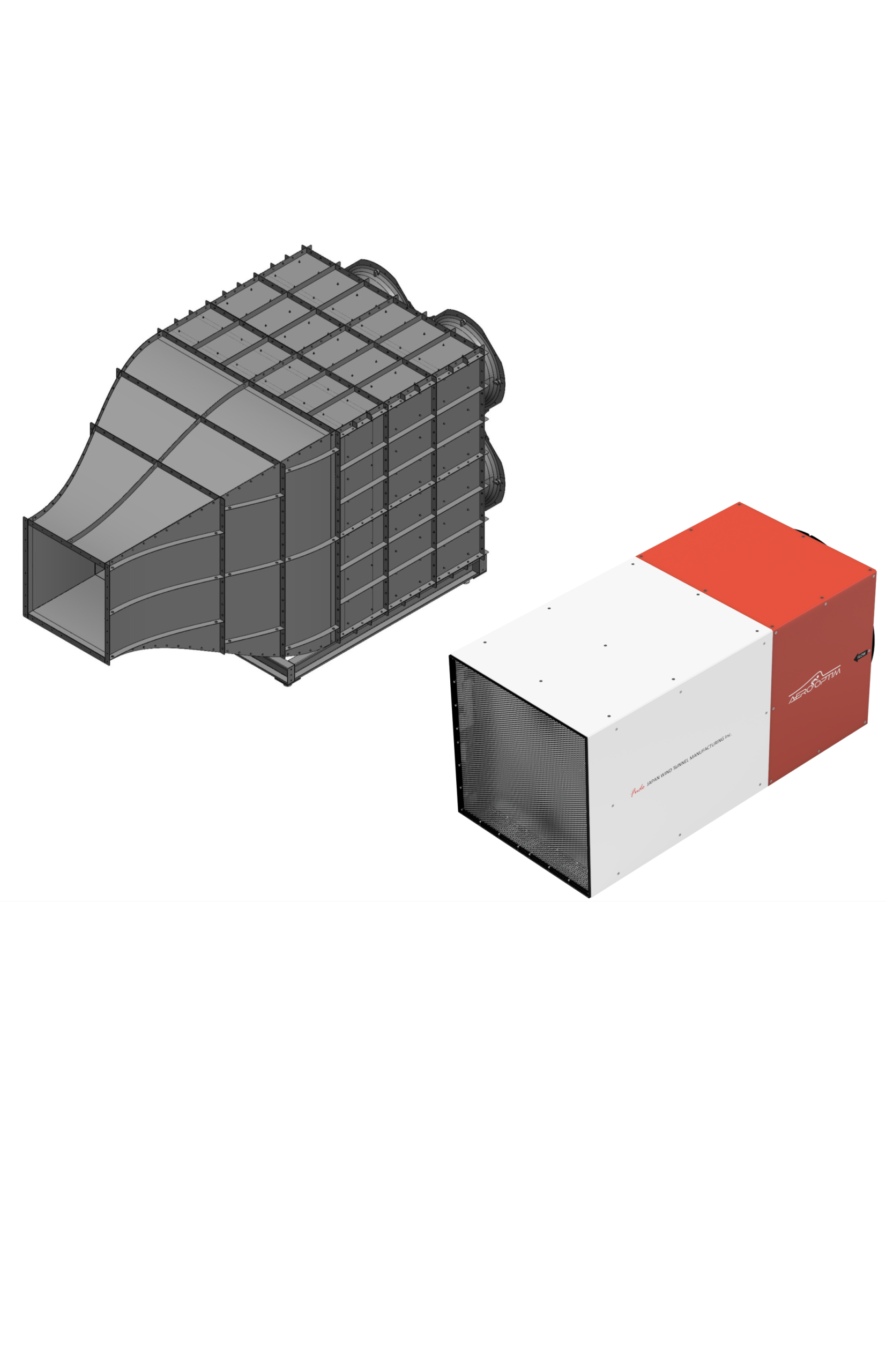

We design small and medium-scale wind tunnels that can fit on a desk or inside a small room. We offer a variety of configurations, including closed-loop, suction and blower-type wind tunnels.

Custom Small-scale Wind Tunnel

Small-scale Wind Tunnels

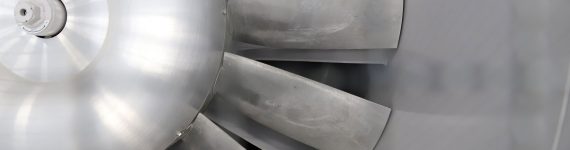

Our services include restorations such as honeycomb or mesh repair or replacement, upgrades for measuring equipment or systems, regular maintenance and cleaning. Feel free to consult us regarding wind tunnel maintenance and refurbishment.

Maintenance and Repair

Wind Tunnel Tests

This platform specializes in measuring the aerodynamics of a bicycle and its rider. Even when the rider is pedaling, the table can measure the aerodynamics of frames, wheels, attachments, and athlete positions, and it can be used to aid in optimizing helmet and outfit design. The standard specifications are as provided. Please contact us regarding wheel rotation, drag, and additional force components.

Bicycle Measuring Table

This table is designed to measure the aerodynamic forces acting on a wheelchair used in competitions. It can be used in a variety of ways, including finding the drag force acting on the wheelchair and determining the best combination of wear and gear as well as racing form to reduce drag. The following specifications are standard, and modifications are available upon request.

Sports Wheelchair Measuring Table

We design and produce traversers and instruments needed to conduct traverse tests. The pictured traverser is designed for one Aero Optim unit. Traversers for other unit sizes can be made upon request.

Traverse Instrument

Our company has produced various custom fixtures, including stings for aerospace applications, balances to test items such as sports wear fibers, bicycles, and sports wheelchairs. We can accommodate many types of test fixtures, including 3-axis (yaw, pitch and roll) and turntable fixtures.

 Specialized Measurement Devices (3, 6-component)

Fixtures and Platforms

We handle anemometer types including hot wire and pitot tubes. We offer suggestions for the most appropriate type of anemometer based on your needs (image is for reference).

Anemometers

Instruments

Measurement Equipment

Our in-house professionals will support the development of your product. This service will conduct a CFD analysis of the 3D data or blueprint of the product you provide. If no 3D model exists, a 3D scan or modeling service is available at our location.

Analysis Service

Analysis

Our in-house professionals will support the development of your product. This service designs and conducts a CFD analysis of your part or product and provides results as well as design advice.

Design and Analysis Service

Design and Analysis

Our in-house professionals will support the development of your product. This service designs, conducts a CFD analysis and manufactures a prototype of your part or product and provides the results and design documents.

Design, Analysis and Prototyping Service

Design, Analysis, and Prototyping

Fluid Analysis and Design
